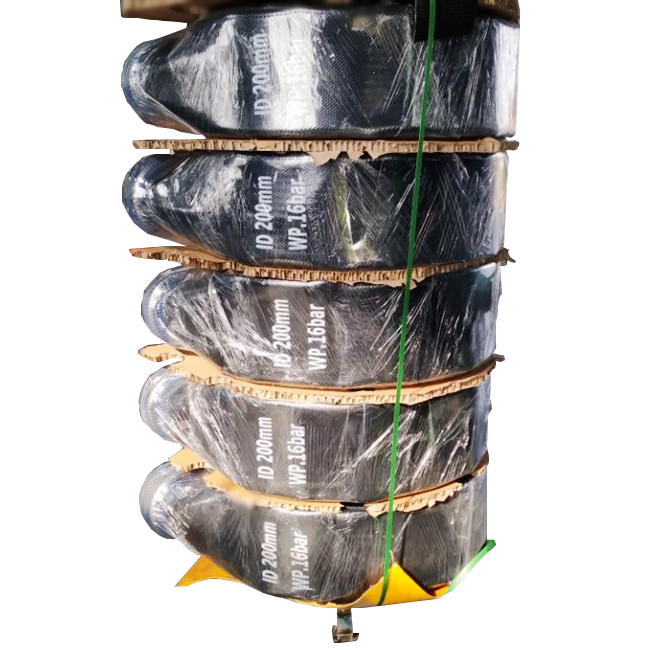

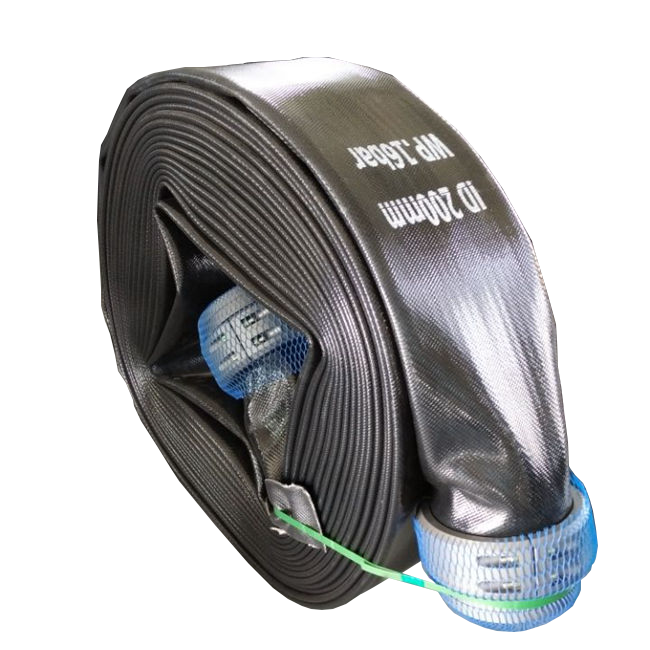

8 inch 240PSI W.P. TPU layflat water frac hose
8 inch 240PSI W.P. TPU layflat water frac hose.The burst pressure of the water is 720PSI,It has good low temperature resistance.At the same time, wear resistance is also very good.The length of one roll can be more than 200 meters（660ft）.In the U.S. market, it is mainly used for fracturing water supply.It’s also popular in other markets.
Inquiry Now
Add To Basket
INTRODUCTION
Product Profile
1.Construction:The hose consists of high tenacity polyester or aramid fiber as hose carcass,polyurethane as innerand outer tube layer which are extruded simultaneously.
2.Features:Abrasive resistance,acid and alkali resistance,oil resistance,corrosion resistance,aging resistance.In thecold environment,the hose will not become stiff,brittle and crack easily.
3.Application:The ideal large flow of long distance gas and liquid transportation,which widely used in petroleum.chemical,shipping,agriculture,water conservancy,mine rescue and firetighting.
4.Working temperature:-58℉-176℉(-40℃~80℃)

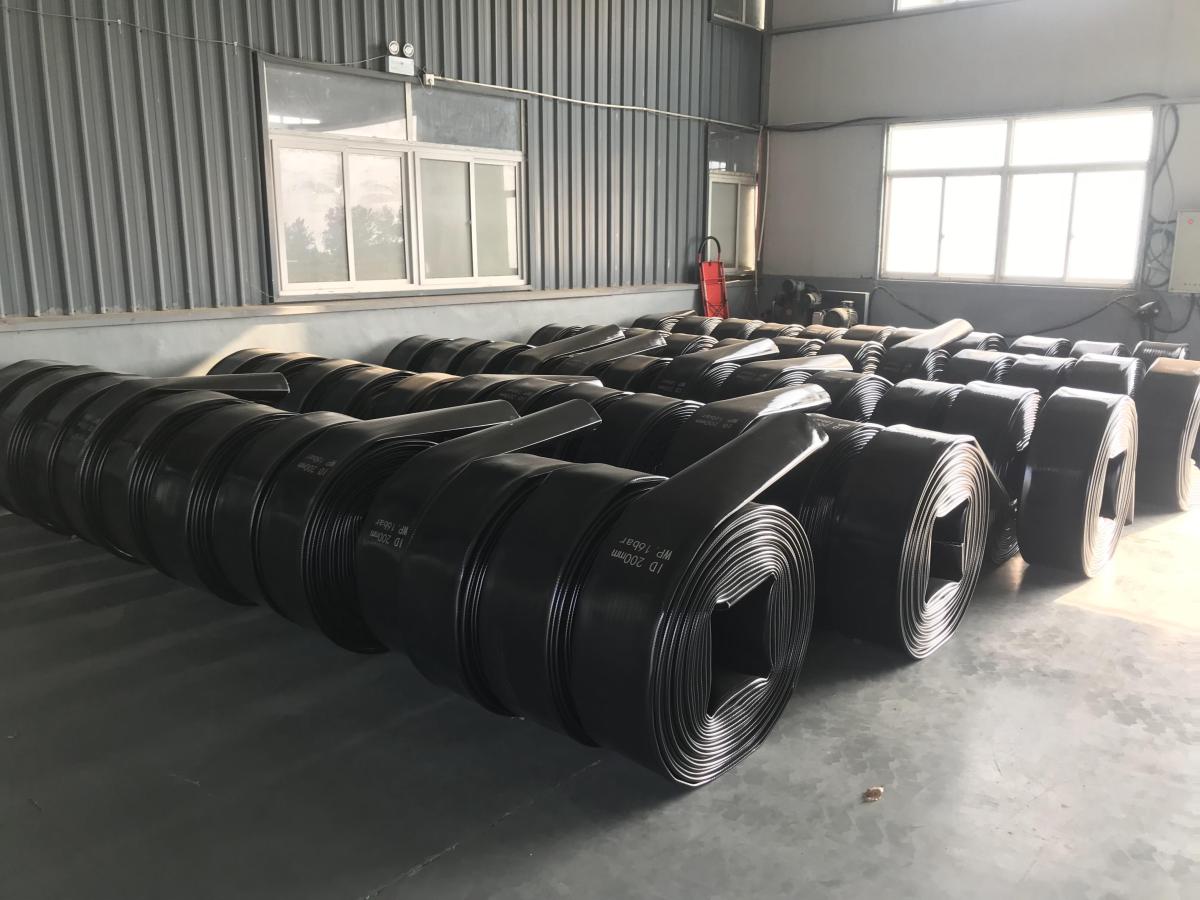

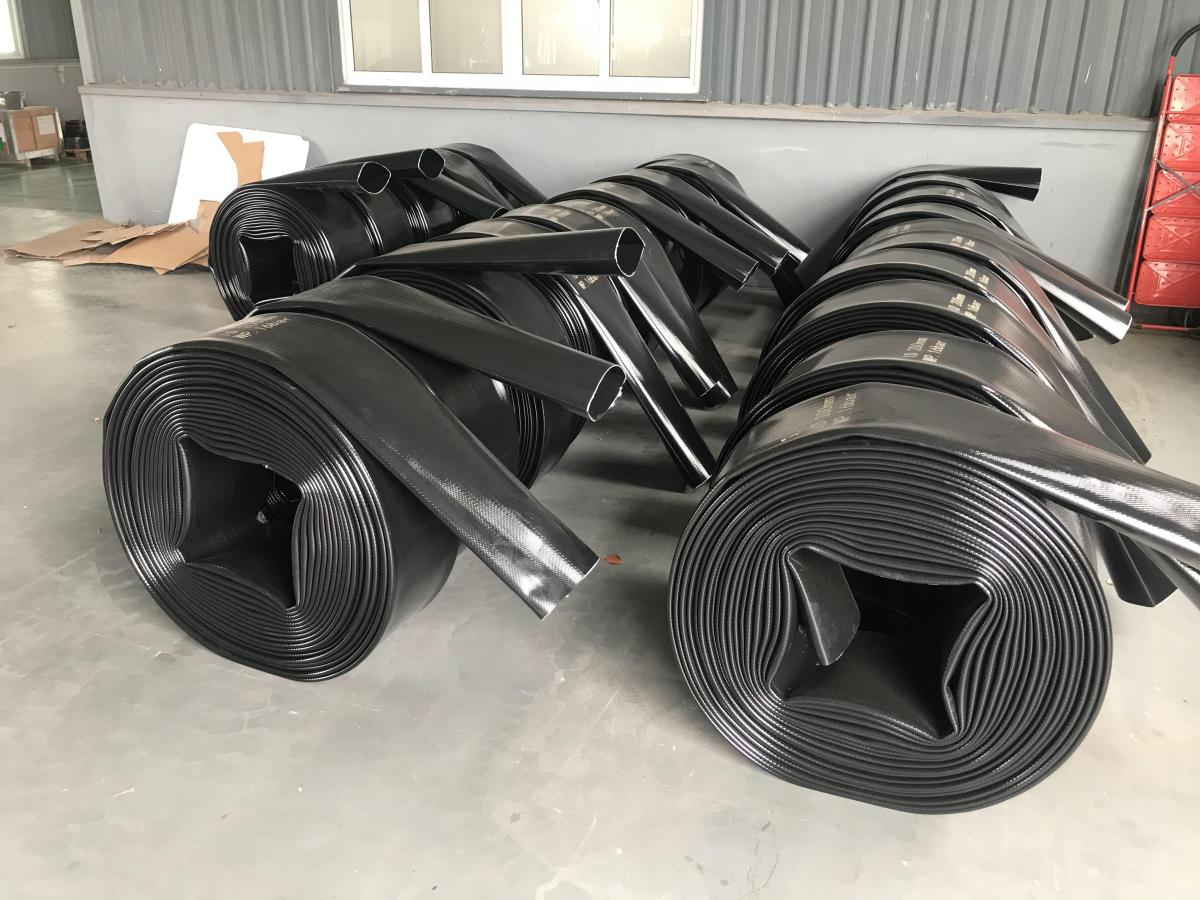

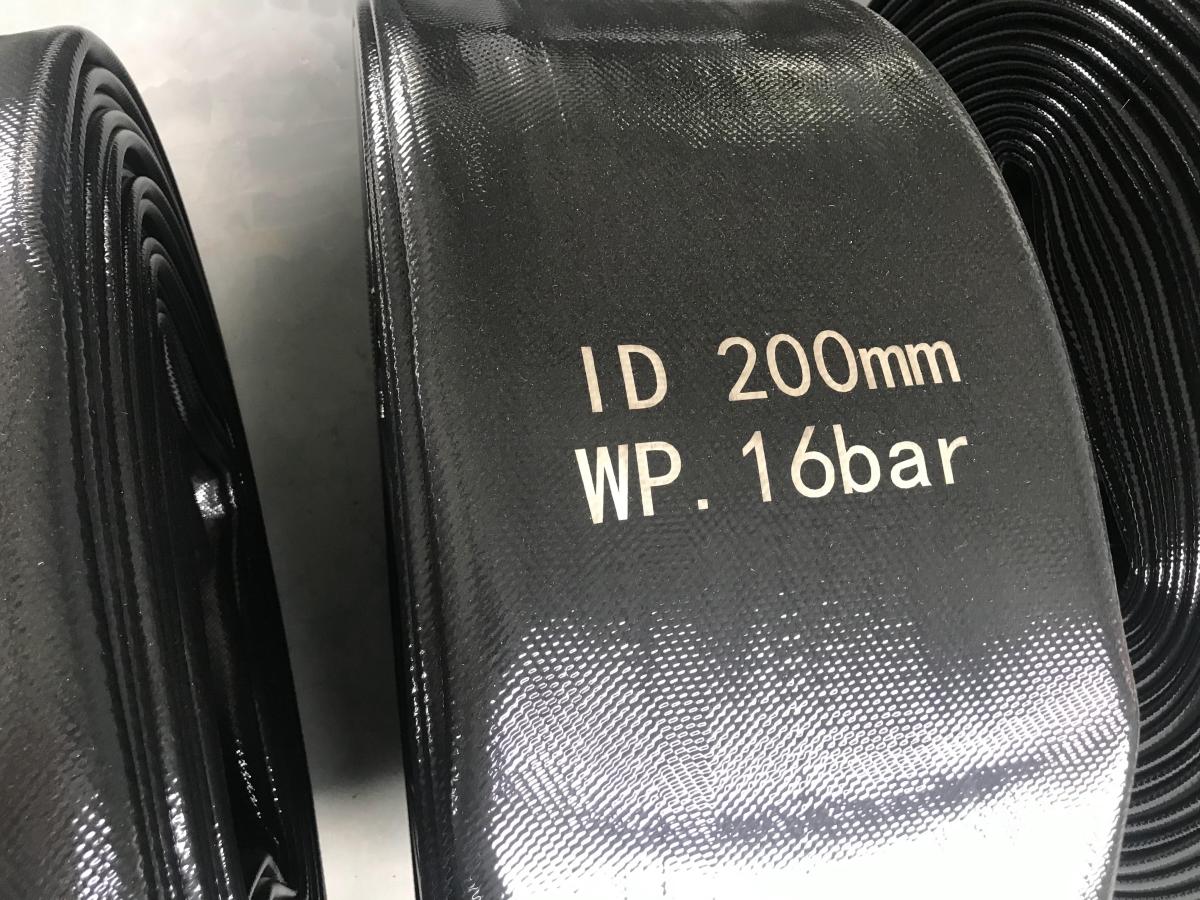

Product Detail Drawing

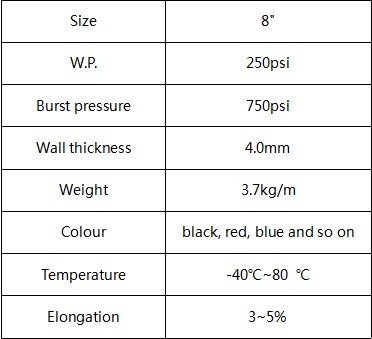

Product Data
Structure Diagram
